Music Studio – Quick Guide for Script

• Where?

• Language

• Events

• Commands

• Properties

• Settings



• Where?^

With Music Studio, you can control the instruments’ behavior and make them more flexible and intelligent by adding some scripts.

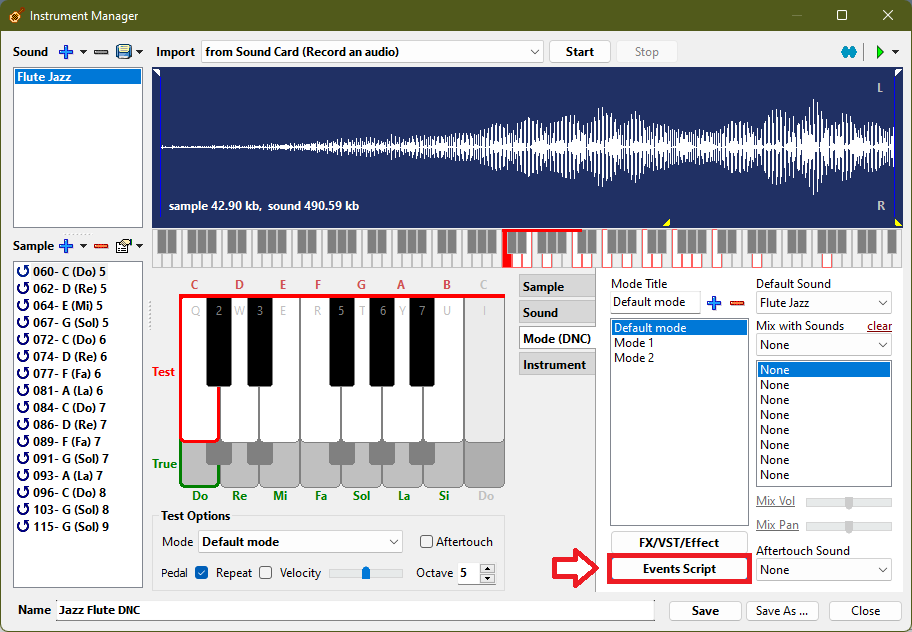

Each mode of each Instrument can have a separate Script:

• Language^

Main: Runs one time at the start.

Main() {
  print("Hello, World!");
}
Hello, World!
Main() {

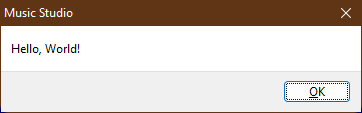

  message("Hello, World!");
}

Variables:
Main() {
  a = 2;               // Integer
  b = 1.45;            // Float
  c = 3, 5, 2.6, 4;    // Array, for example c[3] is 4
  print("Sum:", a + b + c[3]);
}
Sum:  7.45
Functions:
MyFunc() {
  return(10);
}

Main() {
  print("MyFunc: " + MyFunc());
}
MyFunc: 10
MyFunc(a, b) {
  return(a + b);
}

Main() {
  print("MyFunc: " + MyFunc(a:1, b:2));
}
MyFunc: 3
MyFunc(a, b:5) { // b has a default value
  return(a + b);
}

Main() {
  print("MyFunc: " + MyFunc(a:1));
}
MyFunc: 6
if, else:
Main() {
  a = 3 - 1;
  if (a == 2)
    print("2");
  else
    print("It is not 2");
}
2
switch, case:
Main() {
  a = 3 - 1;
  switch (a) {
    case 1: print("1"); break;
    case 2, 3: print("2 or 3"); break;
    case 4..7: print("4, 5, 6 or 7"); break;
    case 8, 12..14: print("8, 12, 13 or 14"); break;
    default: print("something else"); break;
  }
}
2 or 3
for and while:
Main() {
  for (i: 1..3)
    print(i);
}
1
2
3
Main() {
  for (i: 1..5 @ 2)
    print(i);
}
1
3
5
Main() {
  i = 1;
  while (i <= 5) {
    print(i);
    i = i + 2;
  }
}
1
3
5
Main() {
  i = 1;
  while (true) {
    print(i);
    i = i + 2;
    if (i > 5) break;
  }
}
1
3
5
timer: Repeat a block per defined time (in milliseconds).
Timers run in separate threads and are asynchronous,
You can stop all timers by  calling StopTimers();
Main() {
  i = 1;
  timer (100) { // each 100 milliseconds
    print(i);
    i = i + 2;
    if (i > 5) break;
  }
}
1
3
5
Internal functions and variables:
Main() {
  print(Min(5, 3, 8, 1));
  print(Max(5, 3, 8, 1));
  print(MinMax(5, 1, 4));
  print(pi);
  print(Random);     // between 0 and 1
  print(Random(10)); // between 0 and 9
  print(time);       // Current Time in milliseconds
}
1
8
4
3.14159265358979
0.0476205942686647
6
3865061865243

Also byte, shortint, word, integer, longint, abs, sqrt, sqr, sin, cos, arctan, arcsin, arccos, ln, exp, fact, int, and not



• Events^

on (touch): A clavier is touched (on the app or MIDI keyboard)

available data:
sound: Sound index
id: Play ID
key: Clavier number, between 0 and 127
velocity: Touch velocity, between 0 and 127
pedal: Pedal state, 0 or 1

on (aftertouch): A clavier is pressed after touching (on a MIDI device with aftertouch support)

available data:
sound: Sound index
id: Play ID
key: Clavier number, -1 or between 0 and 127 (-1 for Channel Aftertouch)
velocity: Pressure, between 0 and 127
pedal: Pedal state, 0 or 1

on (release): A clavier is released (on the app or MIDI keyboard)

available data:
sound: Sound index
id: Play ID
key: Clavier number, between 0 and 127
velocity: Release velocity, between 0 and 127 (if supported)
pedal: Pedal state, 0 or 1

on (pitchbend): Pitch-bend wheel or joystick (horizontally) is moved (on the app or MIDI)

available data:
level: between -8192 and 8192

on (modulate): Mod wheel or joystick (vertically) is moved (on the app or MIDI)

available data:
level: between -127 and 127

on (pedalon): Pedal is pressed (on the app or MIDI)

on (pedaloff): Pedal is released (on the app or MIDI)

on (control): A control is touched or changed (on a MIDI device)

on (program): Program is changed (on a MIDI device)

on (mode): A DNC button is touched (on the app)

on(touch) {
  if (key >= 60 && velocity >= 90) print(key, velocity);
  return(false); // return(true) if you have done all you need
}
on(aftertouch) {
  effect[2].enable = velocity != 0; // effect[2] is pitch-shake
  effect[2].Depth = velocity;
  effect[2].Speed = 30;
}

• Commands^

Play (sound:, id:, key:, velocity:, balance:, volume:, pan:, keymove:, octavemove:, tune:, pitchmove:, pedal:, attack:, decay:, sustain:, release:, autorelease:, connectkey:, connectspeed:)

Plays a note

on(touch) {
  if (velocity >= 100) play(sound:2); else play(sound:0);
  return(true);
}

Stop (id:, cut)

Stops a playing note, use cut to stop immediately

on(release) {
  stop(cut); // stop all playing notes immediately
  return(true);
}

StopAll (cut)

Stops all playing notes

Change (velocity:, balance:, pitchmove:)

Changes current playing notes

Playing

Count the playing notes

KeyToPitch (key:)

Calculates the pitchmove value from the key number, the key can be a float value

Exit (mode:)

Changes DNC mode

on(release) {
  Exit; // Activate the Default mode
}
on(release) {
  Exit(2); // Activate the DNC mode 2
}


• Properties^

keyboard.count: Keyboard key count (Read only)
keyboard.start: Keyboard first key (Read only)
keyboard.chord: Chord key count (Read only)
keyboard.chordscanlower: Lower Chord Scan button state (Read only)
keyboard.chordscanupper: Upper Chord Scan button state (Read only)
keyboard.chordmemory: Chord Memory button state (Read only)
keyboard.autofill: Auto Fill button state (Read only)
keyboard.synchrostart: Synchro Start button state (Read only)
keyboard.synchrostop: Synchro Stop  button state (Read only)

fx.Count: Count of added FXs in track  (Read only)
fx.Enable: Is track FXs enabled (Read/Write)
fx.EnabledCount: Count of enabled FXs in track (Read only)
fx.Volume: Track Volume (Read/Write)
fx.Balance: Track Balance (Read/Write)
fx.Tune: Track Tune value (Read/Write)
fx.Keymove: Track transpose (Read/Write)
fx.Octavemove: Track move octave (Read/Write)
fx.Stabilitypercent: Track stability percent (Read/Write)
fx.ForceLoop: Track Force Loop (Read/Write)
fx[Index].Enable: Is an FX enabled? (Read/Write)

Change Effects parameters: (Read/Write)
Index is: 0 = Repeat, 1 = Mono/Legato, 2 = Pitch Shake, and 3 = Volume/Pan Shake
effect[Index].Enable
effect[Index].StartDelay
effect[Index].ByPedal
effect[Index].StopByRelease
effect[Index].Mode
effect[Index].Speed
effect[Index].Depth
effect[Index].Gain

on(modulate) {
  effect[2].enable = level != 0;
  effect[2].Depth = abs(level);
  if (level > 0)
    effect[2].Speed = 20;
  else
    effect[2].Speed = 40;
}


• Settings^

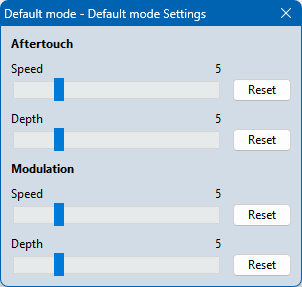

You can let the user set some variables of the script on a settings page.

setting(type, name:, title:, reset:, from:, to:);

The type can be one of text, slider, or toggle

on(aftertouch) {
  effect[2].enable = velocity != 0;
  effect[2].Depth = (velocity * aftertouch_depth) / 5;
  effect[2].Speed = 5 * aftertouch_speed;
}

on(modulate) {
  effect[2].enable = level != 0;
  effect[2].Depth = (abs(level)*modulate_depth) / 5;
  if (level > 0)
    effect[2].Speed = 4*modulate_speed;
  else
    effect[2].Speed = 8*modulate_speed;
}

main() {
  setting(text, title:"Aftertouch");
  setting(slider, name:"aftertouch_speed",
          title:"Speed", reset:5, from:1, to:20);
  setting(slider, name:"aftertouch_depth",
          title:"Depth", reset:5, from:1, to:20);

  setting(text, title:"Modulation");
  setting(slider, name:"modulate_speed",
          title:"Speed", reset:5, from:1, to:20);
  setting(slider, name:"modulate_depth",
          title:"Depth", reset:5, from:1, to:20);
}
